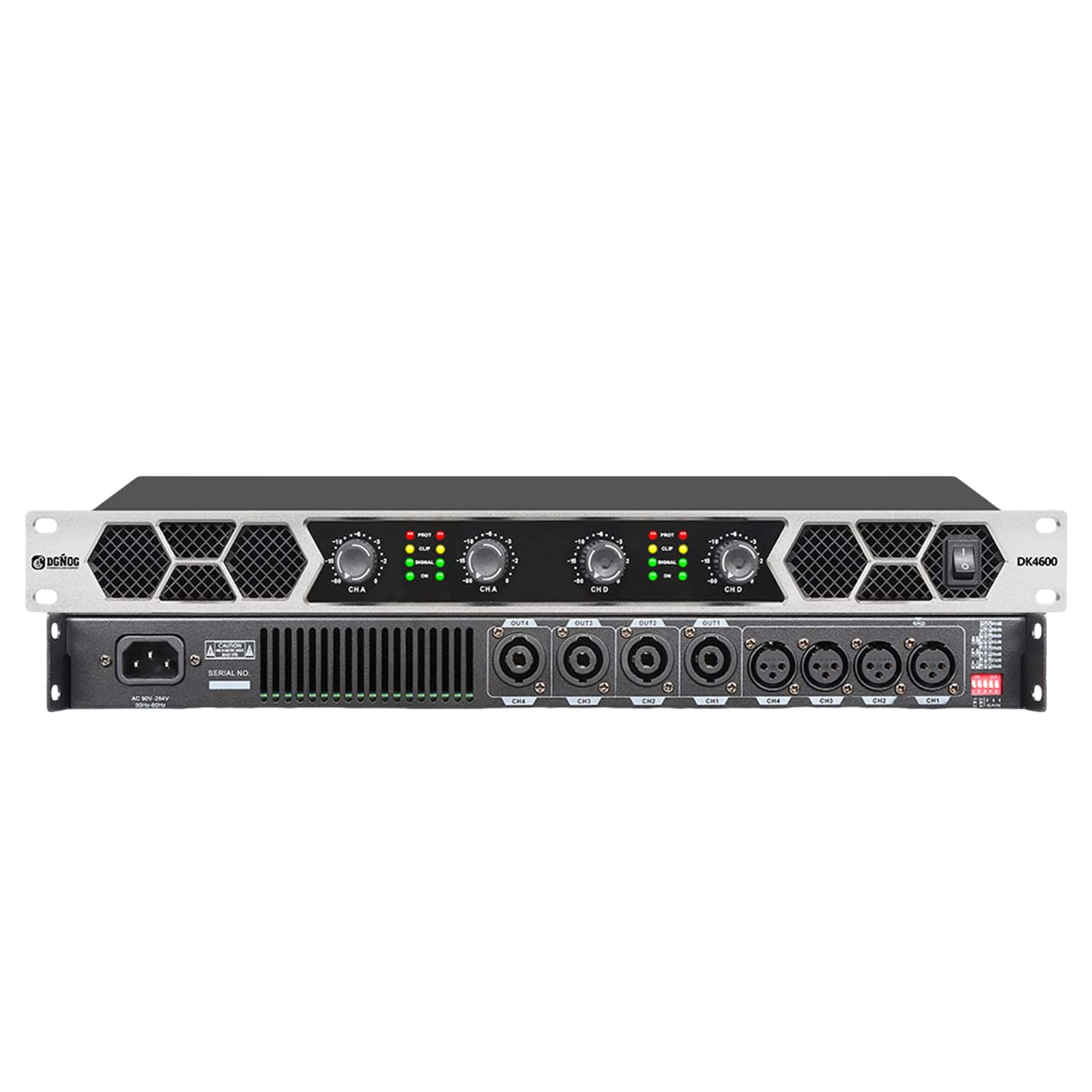

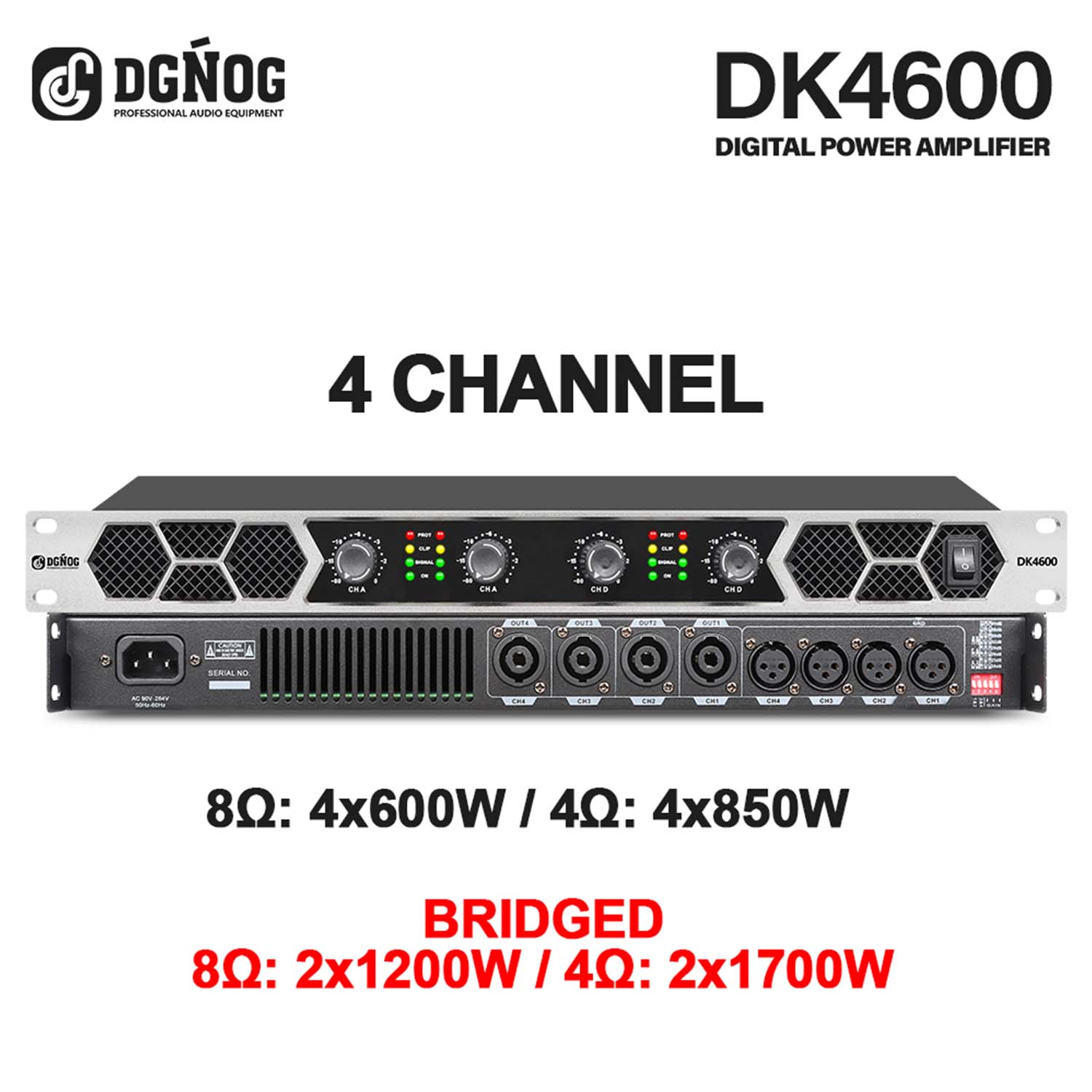

DK4600 4-Channel Professional Digital Amplifier
DK4600 is a 1U four-channel professional amplifier with selectable operating modes, balanced XLR inputs and Speakon outputs.
SKU:Q00042
PROFESSIONAL AUDIO · B2B SOURCING
DK4600 is positioned for compatible professional loudspeaker systems requiring four-channel amplification, flexible stereo/parallel/bridge operation and integrated protection. The source lists several alternative power-output sets, so the exact model rating must be confirmed.
DK4600 is positioned for compatible professional loudspeaker systems requiring four-channel amplification, flexible stereo/parallel/bridge operation and integrated protection. The source lists several alternative power-output sets, so the exact model rating must be confirmed.
| Model | DK4600 |
| Channels | 4 |
| 8 Ω stereo options | 4×500 W / 4×600 W / 4×800 W |
| 4 Ω stereo options | 4×750 W / 4×850 W / 4×1050 W |
| 8 Ω bridge options | 2×1000 W / 2×1200 W / 2×1600 W |
| 4 Ω bridge options | 2×1500 W / 2×1700 W / 2×2100 W |
| Power-rating note | Multiple alternatives listed; confirm rating for this exact model |
| Frequency response | 20 Hz–200 kHz, ±1 dB (as published) |
| THD | <0.1%, 20 Hz–20 kHz |
| Slew rate | >28 V/µs |
| Damping factor | >240 at 8 Ω / 1 kHz (source unit wording normalized) |
| Signal-to-noise ratio | 95 dB, A-weighted |
| Input gain | 41 dB; multi-level adjustment from 38 dB to 20 dB stated |
| Input impedance | 20 kΩ balanced / 10 kΩ unbalanced |
| Inputs | Balanced XLR, one per channel |
| Outputs | 4-pole Speakon |
| Modes | Stereo / Parallel / Bridge |
| Protection | Short circuit, DC and overheating |
| Cooling | Front-to-back airflow with forced fan exhaust |
| Dimensions | 483 × 290 × 44 mm |
| Packaged dimensions | 530 × 360 × 100 mm |
| Net / gross weight | 4.9 kg / 6.2 kg |
| Power cord | 15 A / 250 V plug; CCC 3×2.0 mm² cable stated |
| SKU | Q00042 |
Suitable for compatible touring, rental and fixed-installation loudspeaker systems. Confirm the exact per-channel output rating, AC-voltage version, load limits, connector wiring and certification before ordering.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What output power does this model provide?
The source lists three alternative power sets rather than one exact rating; confirm the selected DK4600 configuration.
Which operating modes are available?
Stereo, Parallel and Bridge.
What inputs and outputs are used?
Balanced XLR inputs and 4-pole Speakon speaker outputs.
Which protections are stated?
Short-circuit, DC and over-temperature protection.
