2-Channel Professional Digital Amplifier
2-Channel Professional Amplifier is a compact two-channel professional amplifier for compatible loudspeaker systems.
SKU:Q00041
PROFESSIONAL AUDIO · B2B SOURCING

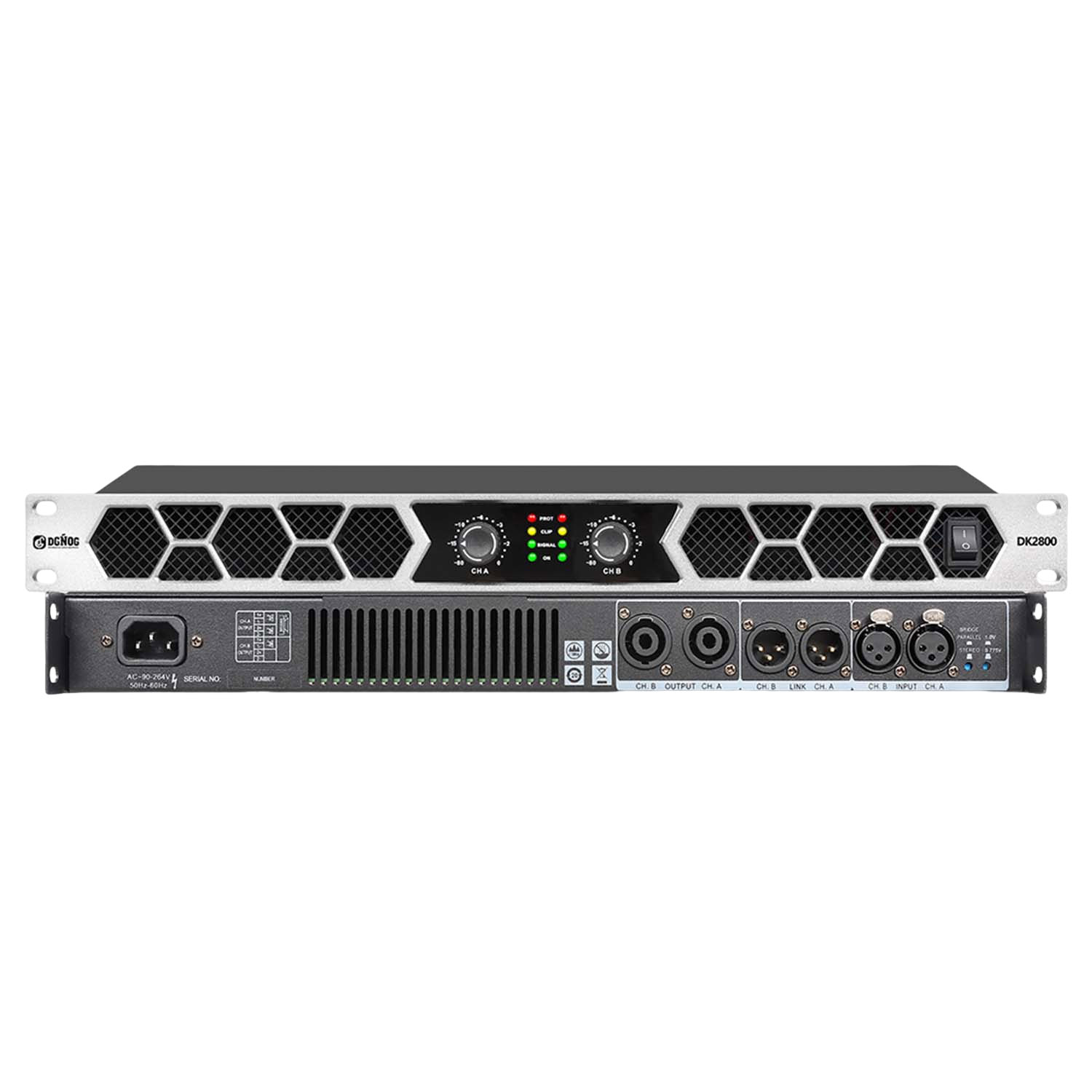

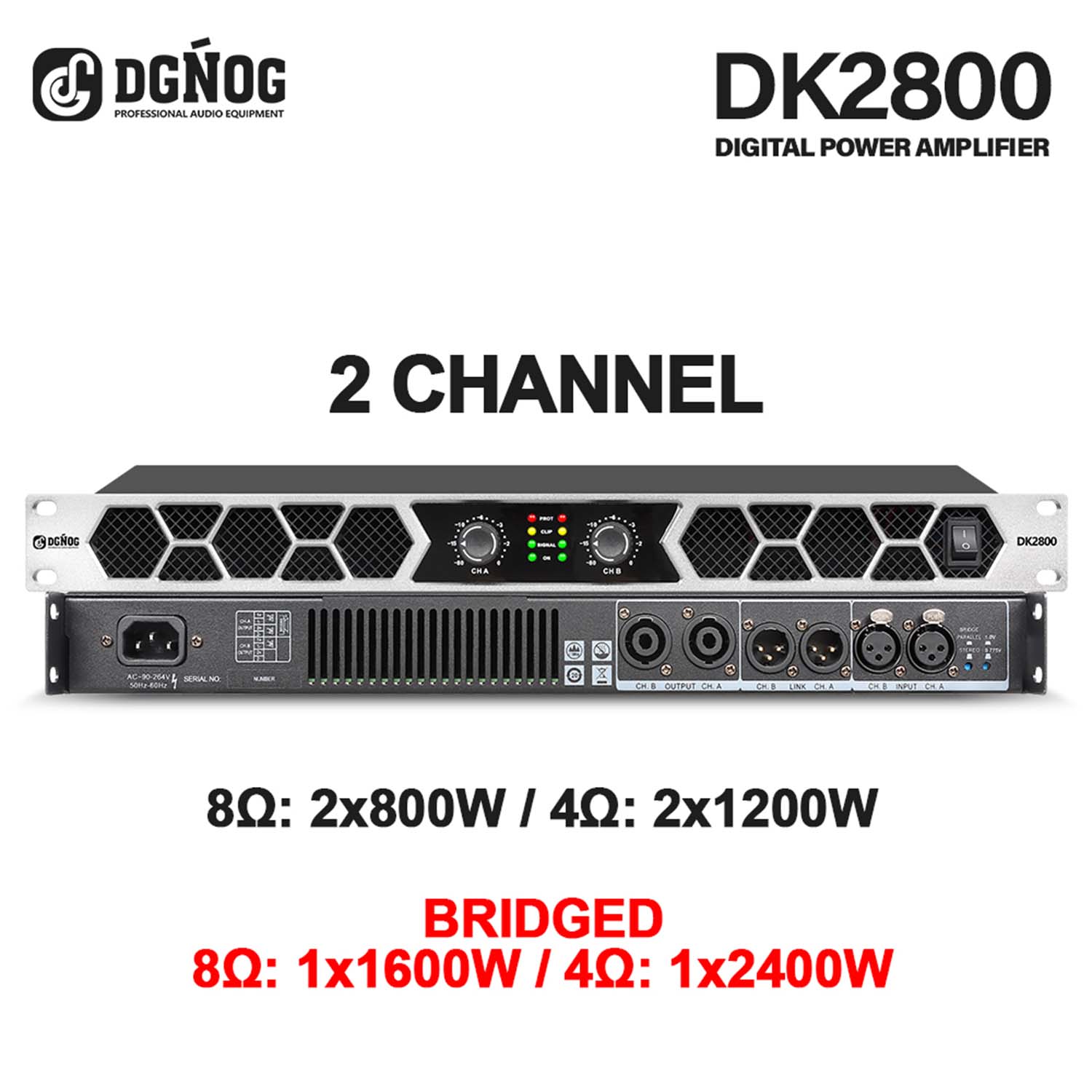

2-Channel Professional Amplifier provides stereo and bridged operating power options in a compact 1U-style chassis. The source lists two alternative ratings at each load, so buyers should confirm the exact output configuration before specifying a system.
2-Channel Professional Amplifier provides stereo and bridged operating power options in a compact 1U-style chassis. The source lists two alternative ratings at each load, so buyers should confirm the exact output configuration before specifying a system.
| Model | 2-Channel Professional Amplifier |
| Model identifier | Not stated in page title or current source |
| Channels | 2 |
| 8 Ω stereo options | 2×600 W / 2×800 W |
| 4 Ω stereo options | 2×1000 W / 2×1200 W |
| 8 Ω bridge options | 1×1200 W / 1×1600 W |
| 4 Ω bridge options | 1×2000 W / 1×2400 W |
| Power-rating note | Two alternatives listed at each load; confirm exact model configuration |
| Frequency response | 15 Hz–20 kHz, ±1 dB |
| THD | <0.1% |
| Slew rate | 28 V/µs |
| Damping factor | >240 at 1 kHz / 8 Ω |
| Signal-to-noise ratio | 110 dB |
| Input sensitivity | 0.775 V / 1 V |
| Input impedance | 20 kΩ balanced / 10 kΩ unbalanced |
| AC input | 90–264 V, 50/60 Hz |
| Dimensions | 483 × 230 × 44 mm |
| Packaged dimensions | 550 × 320 × 80 mm |
| Net / gross weight | 4.7 kg / 6 kg |
| Connectors | Not stated in current source |
| SKU | Q00041 |
Suitable for compatible touring, rental and fixed-installation speaker systems. Confirm exact rated output, minimum load, connector types, protection functions and supplied power cord.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What is the exact output power?
The source gives two alternative ratings at each load; confirm the selected 2-Channel Professional Amplifier version.
Does it support bridged operation?
Yes. 8 Ω and 4 Ω bridged options are published.
What AC input is supported?
90–264 V, 50/60 Hz.
Which audio connectors are fitted?
Not stated in the current source; request rear-panel confirmation.
