K8004 for Professional Buyers

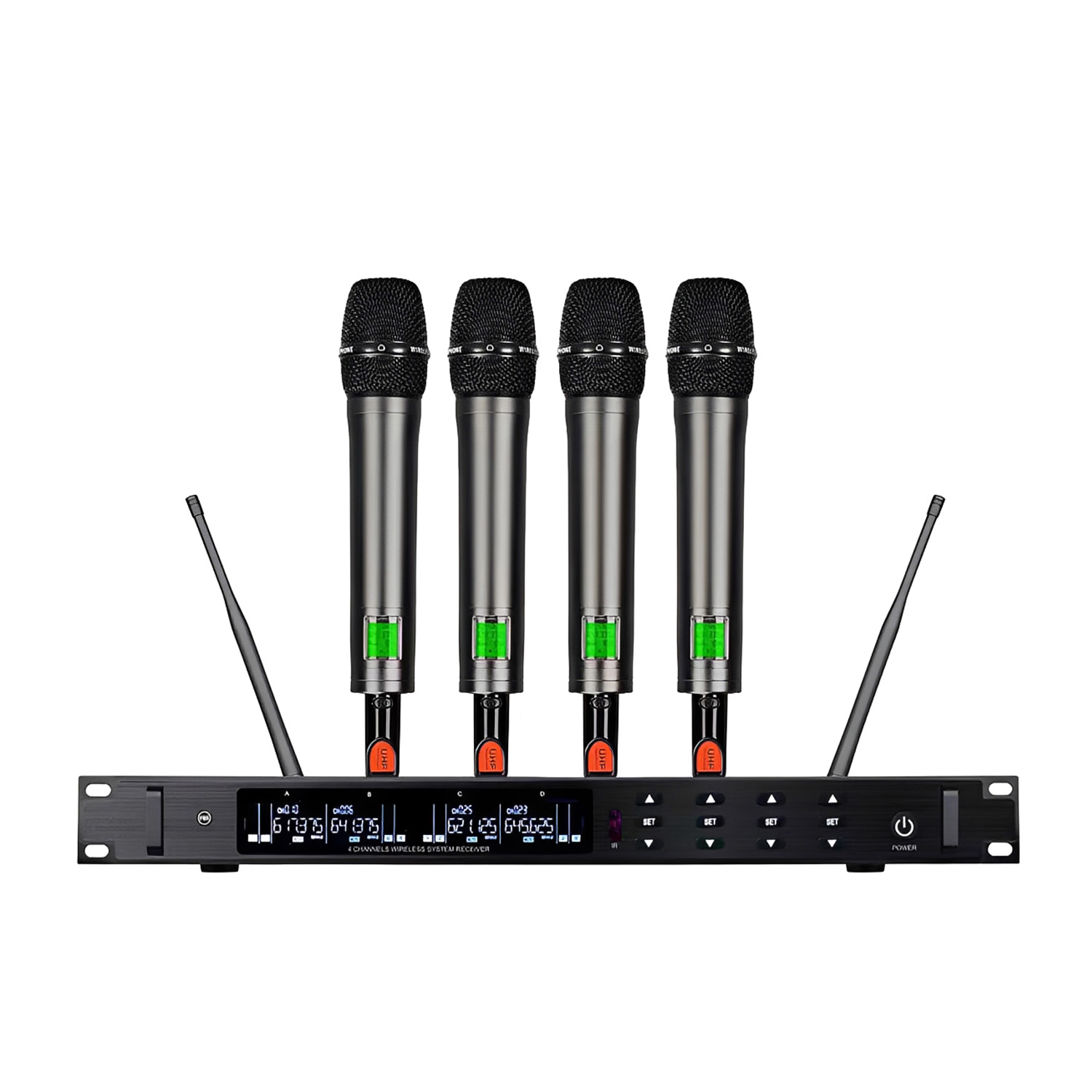

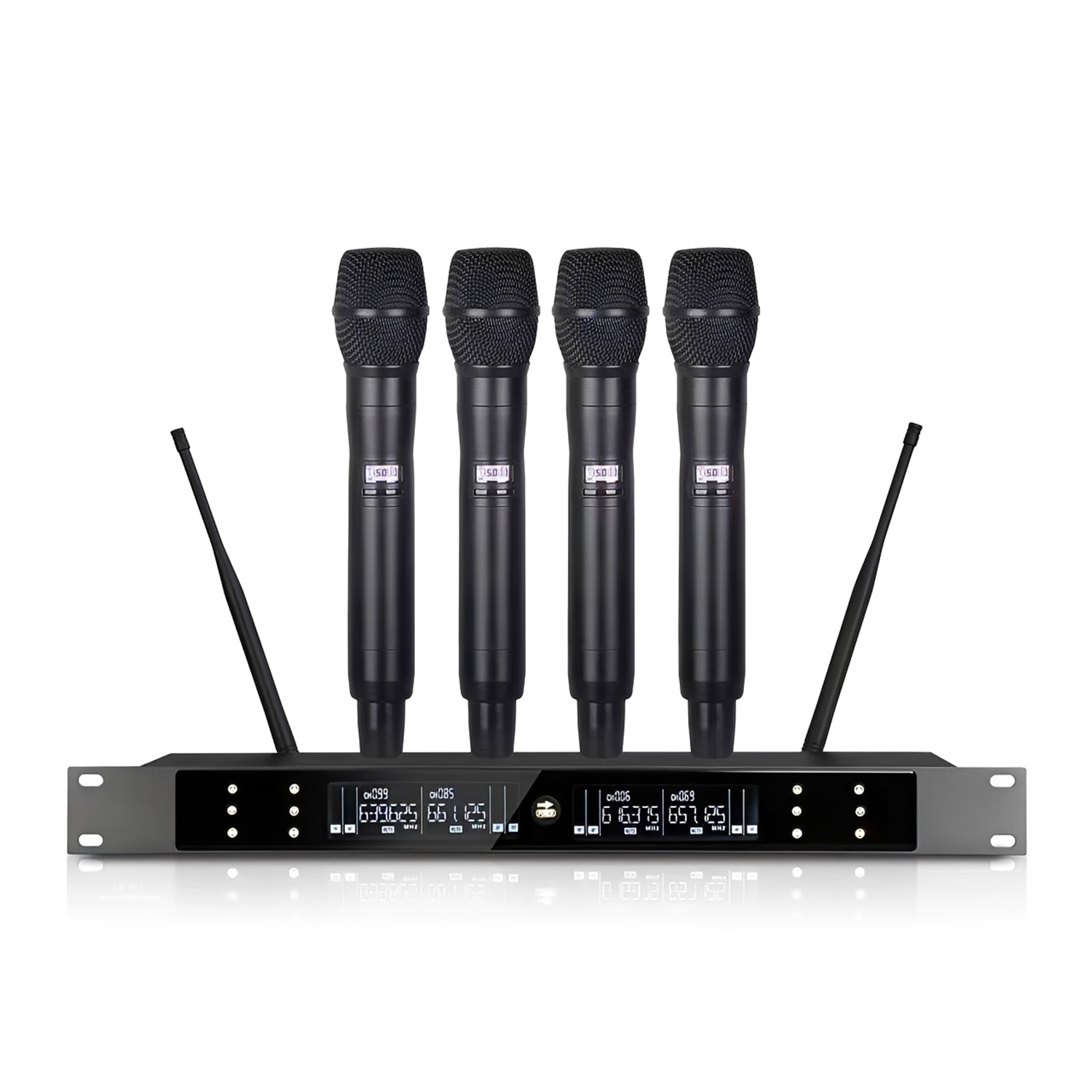

K8004 is a four-channel UHF system with dynamic transmitters and balanced/microphone-level receiver outputs.

REQUEST WHOLESALE PRICE

Why Buyers Consider the K8004

Clear sourcing profile: key RF, audio and power data are consolidated for comparison.
Application flexibility: suitable for professional audio, education, events and installation channels.
Regional ordering: exact operating band must be legal in the destination market.
Order verification: confirm transmitter type, included accessories, connector and carton details before purchase.

Product Overview

K8004 is a four-channel UHF system with dynamic transmitters and balanced/microphone-level receiver outputs.

Published Specifications

Channels	4
Family range	530–950 MHz; exact band required
Modulation	FM
Maximum deviation	±48 kHz
Frequency response	50 Hz–15 kHz
THD	≤1%
Temperature	0°C to +40°C interpreted from source
Sensitivity	7 dBμV at >78 dB stated
Outputs	Balanced −20 dBV / 100 Ω; mic −12 dBV / 5 kΩ
Receiver power	DC 12 V / 1000 mA
Transmit power	10 mW
Transmitter battery	2 × 1.5 V
Microphone	Dynamic
Compliance	Confirm frequency legality for destination market
Package / MOQ	Request confirmation

Applications and Buyer Fit

Suitable for multi-user events, karaoke, conferences, education and wholesale distribution.

ASK ABOUT DISTRIBUTOR TERMS →

Wholesale and Project Support

Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.

Frequently Asked Questions

Is the K8004 available for wholesale orders?
Yes. Contact ELEGAUDIO with your quantity, destination market and application for current pricing and availability.

Can specifications or packaging be confirmed before ordering?
Yes. Request the current specification sheet, packing information and order details before purchase.

What information should I include in an inquiry?
Please include model, quantity, destination country and intended application for a faster quotation.

Source the K8004 for Your Market

Request current pricing, availability and distributor support.

GET A QUOTE

System Oscillation mode: PLL synthesized Frequency range: 530-950MHz Modulation: FM Max.deviation: ±48KHz Audio frequency: 50Hz-15KHz T.H.D: ≤1% Working Temperature: 0?~+40? Receiver Sensitivity: 7dBuV(>78dB) Sensitivity range: 30dBuV RF squelch?≥75dB Audio output level?Balanced output: -20dBV/100Ω; MIC output: -12dBV/5KΩ Power: DC12 Working power: 1000mA Transmitter RF output power: 10mW RF squelch: -55dB Battery: 1.5Vx2 purchase Pick-up pattern: Dynamic
