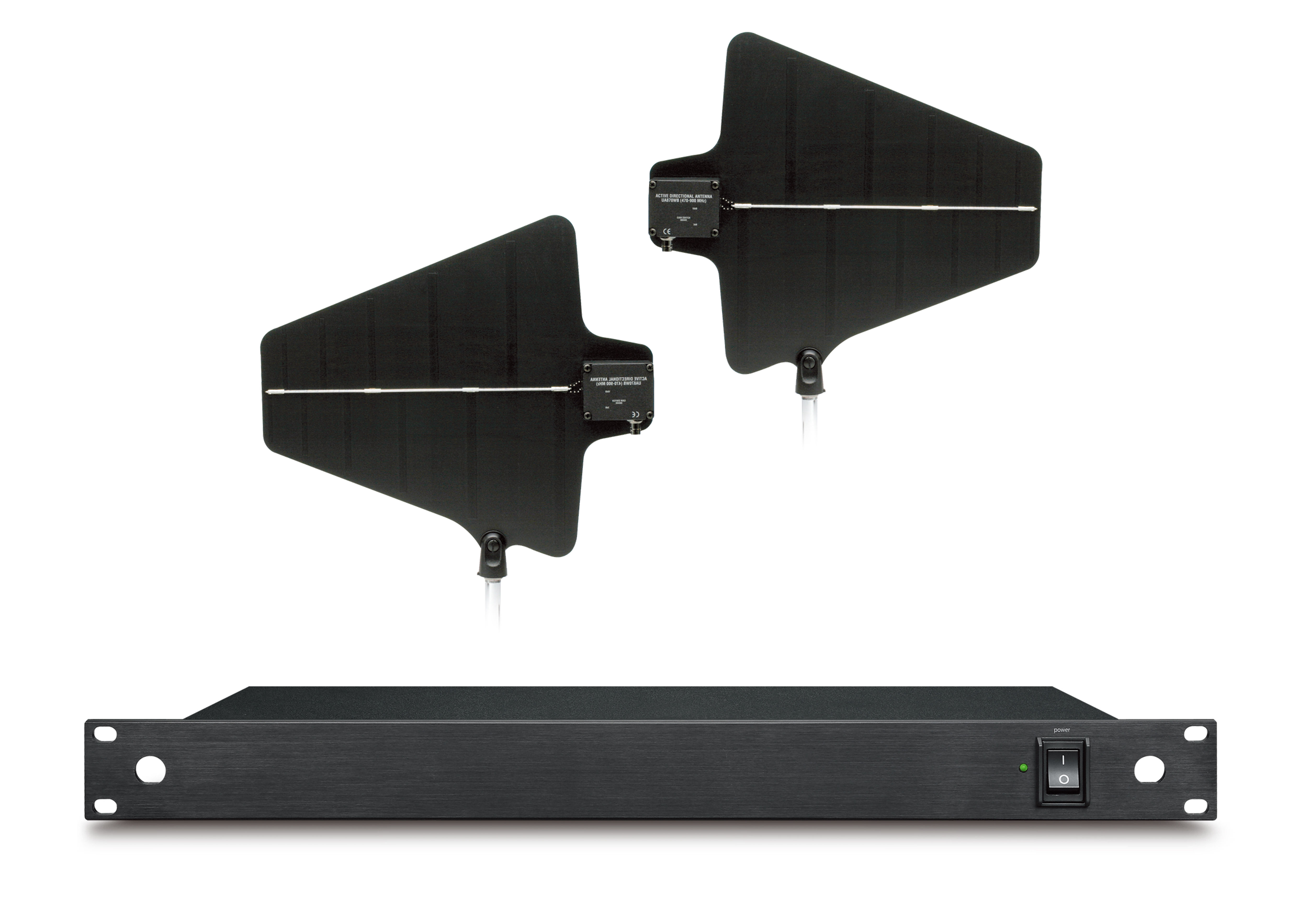

SM-3G combines active directional UHF antenna coverage with antenna distribution for multi-receiver wireless microphone systems. It is intended for stages, rental systems, conference venues and fixed installations that need more controlled RF coverage.
Choose SM-3G when several compatible wireless receivers must share a directional antenna pair and the installation needs stronger rejection of RF signals outside the intended coverage area. Confirm the legal frequency band, receiver compatibility, cable length and required number of distributed outputs before ordering.
| Model | SM-3G |
| System type | Active directional UHF antenna and receiver antenna distribution system |
| Antenna gain | Selectable 3 dB or 10 dB |
| Distribution-system frequency range | 600-900 MHz stated; confirm the current regional version |
| Antenna document range | 470-960 MHz stated; order only the version legal and compatible in the destination market |
| Input intercept point | +22 dBm |
| Noise figure | 4.0 dB typical, centre band |
| Distribution gain | +6 to +9 dB, centre band |
| Impedance | 50 ohms |
| Connector | TNC female |
| Mains power | 100-240 V AC, 50/60 Hz |
| Receiver capacity statement | Eight-channel low-loss distribution design; confirm output count and receiver compatibility for the current version |
Is SM-3G a wireless microphone receiver?
No. It is an antenna and RF distribution solution used with compatible wireless microphone receivers.
Why are two frequency ranges shown?
The supplier document states a wide antenna range and a narrower distribution-system range. Confirm the exact current regional version before quotation and shipment.
Can it feed several receivers?
Yes, multi-receiver distribution is the intended use. The exact number of outputs and compatible receiver models must be confirmed for the ordered version.
Send receiver models, channel count, destination market and cable plan for compatibility confirmation and wholesale pricing.
REQUEST A SYSTEM MATCHOEM and ODM options depend on the model and quantity. Send your logo, packaging requirements, destination market and expected order quantity for confirmation.
Send the model name, quantity, country and intended application. ELEGAUDIO will confirm the current product version, available documentation, MOQ, price and lead time.
Sample availability varies by model. Contact us with your evaluation requirements so the correct configuration can be confirmed before shipment.
