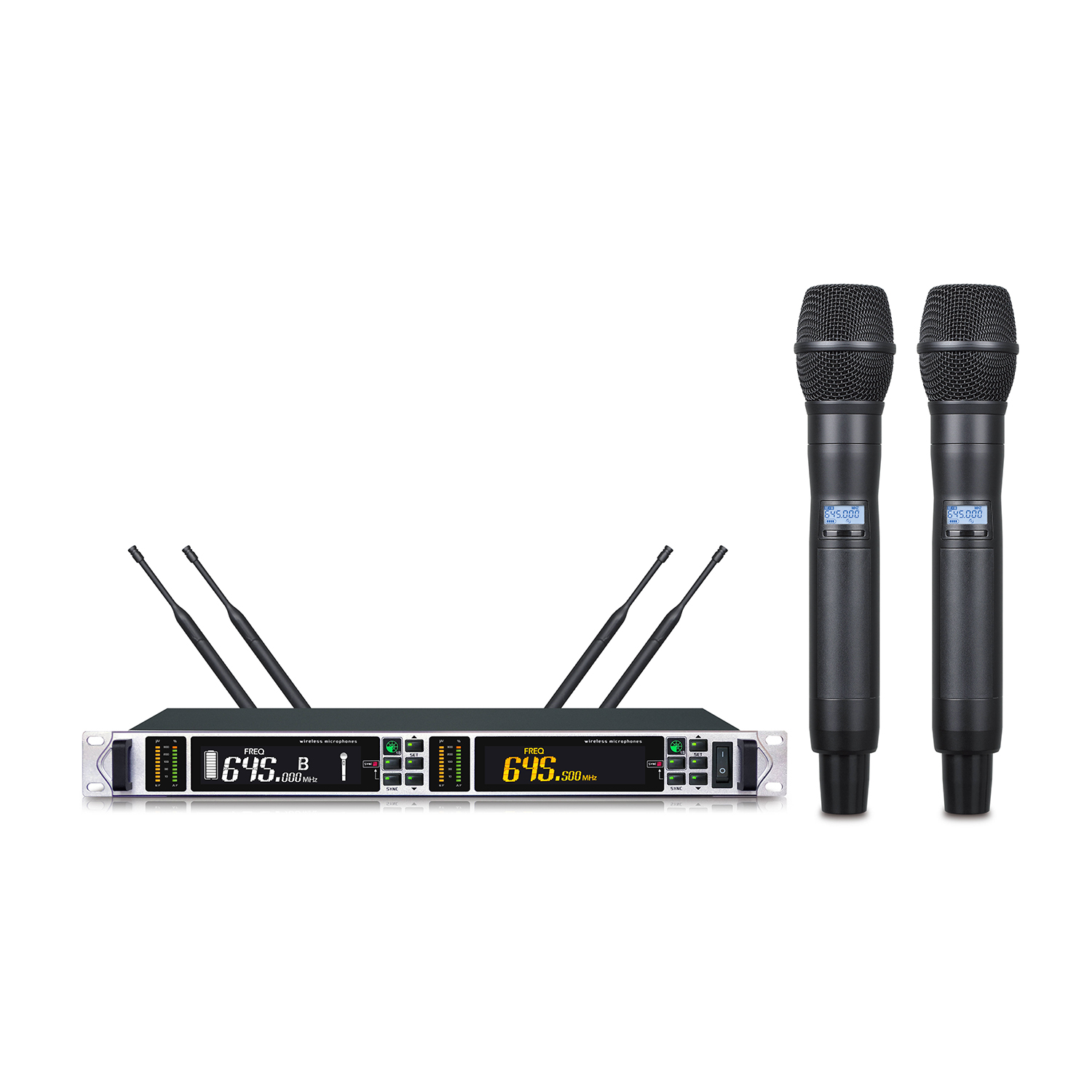

Product Description
1 Radar search frequency
2 Signal strength SQ setting
3 Unique ID lock frequency DPLL
4 stage-level sound quality
5 Real-time monitoring of dual screen status
6 LCD screen status real-time monitoring, battery display
7Integrated mini four-line antenna splitter, true diversity UHF, stable signal, strong anti-interference ability.
Suitable for scenes: small and medium-sized performances, school projects and other occasions.
Receiver
Chassis specifications: standard 1U chassis
Number of channel groups: dual channels
Carrier frequency band: 615~665MHz 780~820MHz
Modulation method: FM
Oscillation mode: PLL phase locked frequency synthesizer
Frequency stability: ±0.0005%
Sensitivity: When the offset is equal to 25KHz and 6dBμV is input, S/N>60dB
Maximum deviation: ±45kHz
Frequency bandwidth: 40MHz
Comprehensive S/N ratio: >108 dB
Comprehensive T.H.D.: <0.4% @ 1 KHz
Comprehensive frequency response: 65Hz~18kHz ± 3dB,
Maximum output voltage: balanced: -20dBV/100Ω,
Unbalanced: -4dBV/5KΩ.

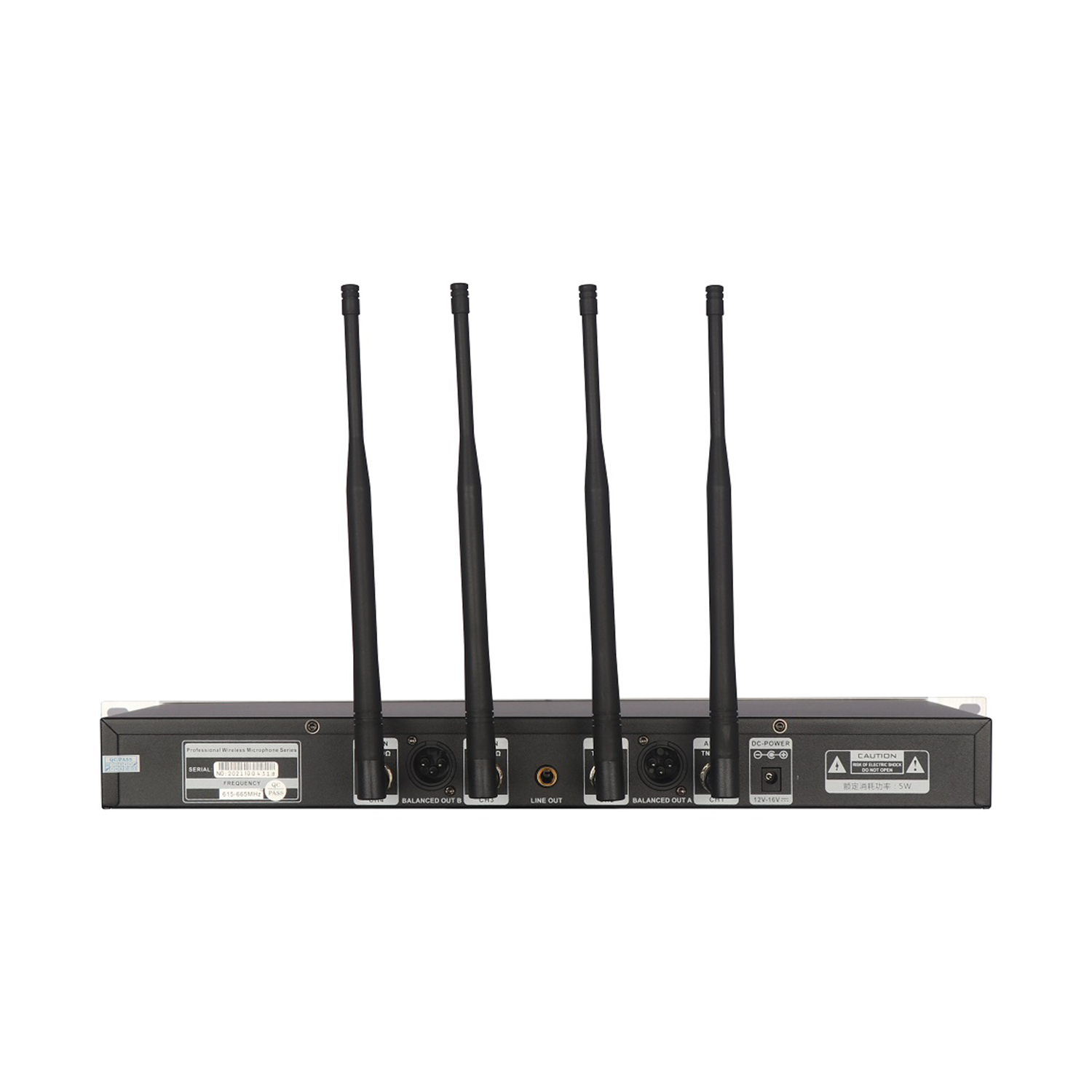

Output socket: XLR balanced and 6.3φ unbalanced socket
Effective working distance: 200 meters in general (open place)
Power supply: 100-240V AC50/60 Hz, 10W
Weight: 4.3KG
Size (mm): 421 (L) ×43 (H) ×206 (W)
Handheld transmitter microphone
Carrier frequency band: 615~665MHz 780~820MHz
Oscillation mode: PLL phase locked frequency synthesizer
Harmonic radiation: <-63dBm
Frequency bandwidth: 80MHz
Maximum deviation: ± 45KHz
Power output: 10mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL
Sound head: moving coil
RF power output: 8mW; 8mW/15mW(Selectable)
Battery: AA×2
Current consumption: <110 mA
Battery consumption: Almost 6 Hours
Size (mm): 265mm long × 56mm diameter
