Product Description
Technical Specifications:

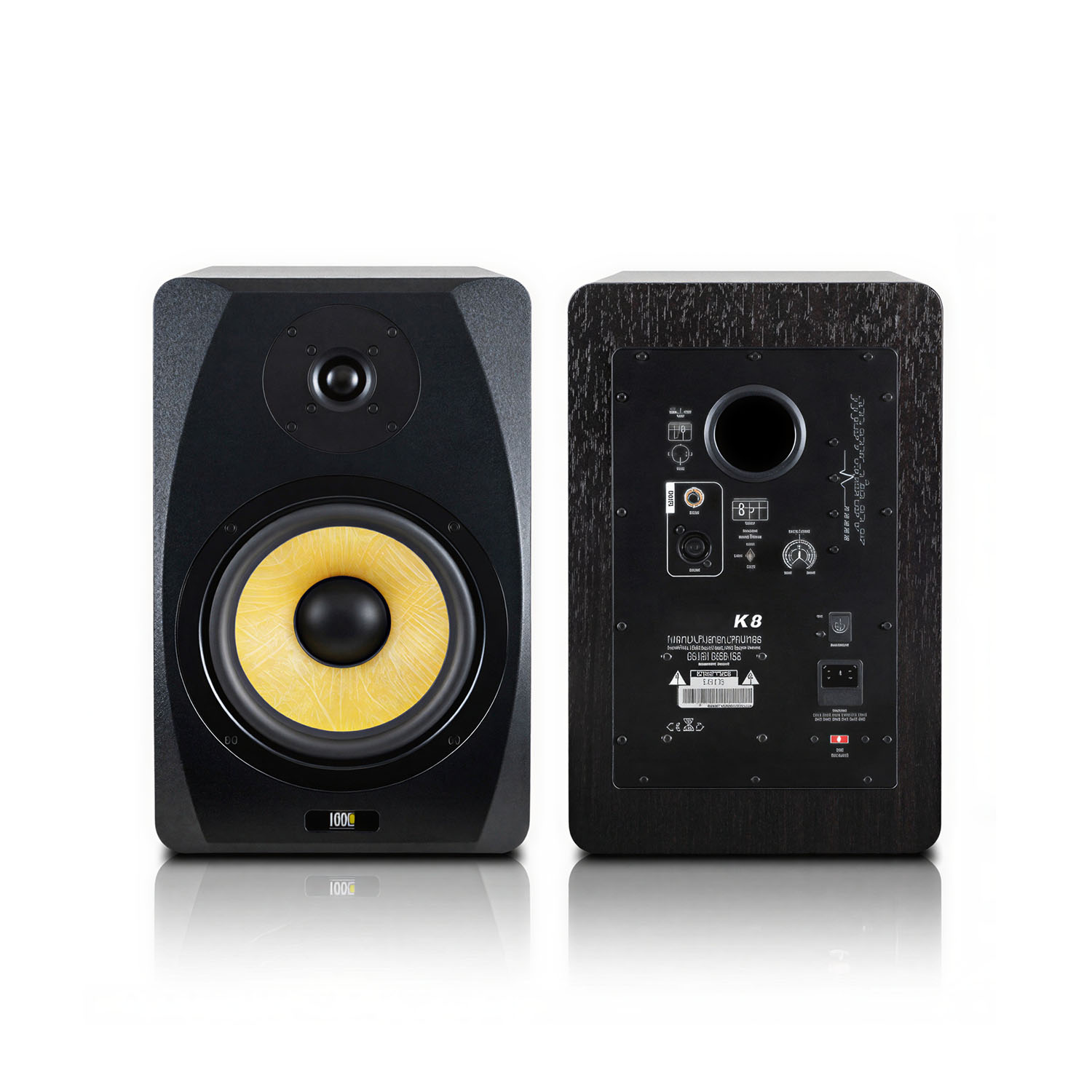

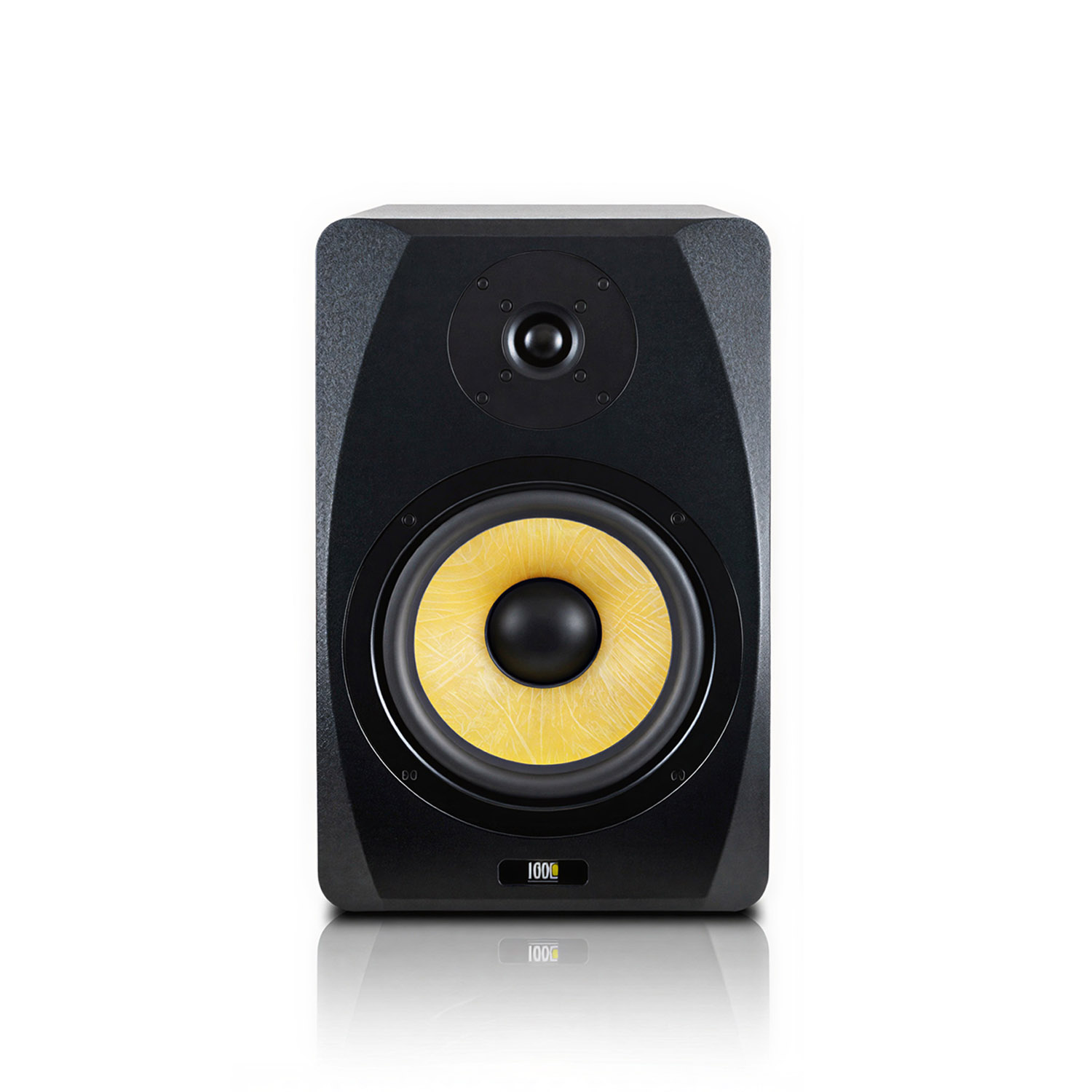

• Type: Bidirectional Nearfield Studio Reference Monitoring Speaker
• Bass Driver: 8-inch (203mm) Kevlar Curved Cone with High-Temperature Resistant Voice Coil, Insulated Rubber Ring, Fully Magnetic Shielding Design
• Treble Driver: 1.25-inch (32mm) Pure Natural Silk Dome Magnetic Shielding Design
• Frequency Response: 38Hz–22kHz
• Crossover Frequency: 2.2kHz
• Total Power: 130W
• Bass Power: 70W
• Treble Power: 60W
• Signal-to-Noise Ratio: >100dB
• Input Connections:
• 1 x XLR Balanced Input
• 1 x TRS Balanced/Unbalanced Input
Technical Specifications
• Polarity: When at + terminal, the bass driver produces outward cone displacement
• Input Resistance: 20KΩ (balanced), 10KΩ (unbalanced)
• Input Sensitivity: At maximum volume, 85mV pink noise input at 1m produces 90dBA output
• Protection: RF interference, output current limiting, over-temperature, switch transient, subwoofer filtering, external power fuse
• Display: Power switch indicator on front panel
• Power Requirements: Factory-configured for 115V ~50/60Hz, 230V ~50/60Hz, or 100V ~50/60Hz
• Enclosure: High Sound Efficiency Vinyl Composite Medium-Density Fiberboard
• Dimensions (WxDxH): 250mm x 305mm x 400mm
• Weight (Unpackaged): 10.6kg
