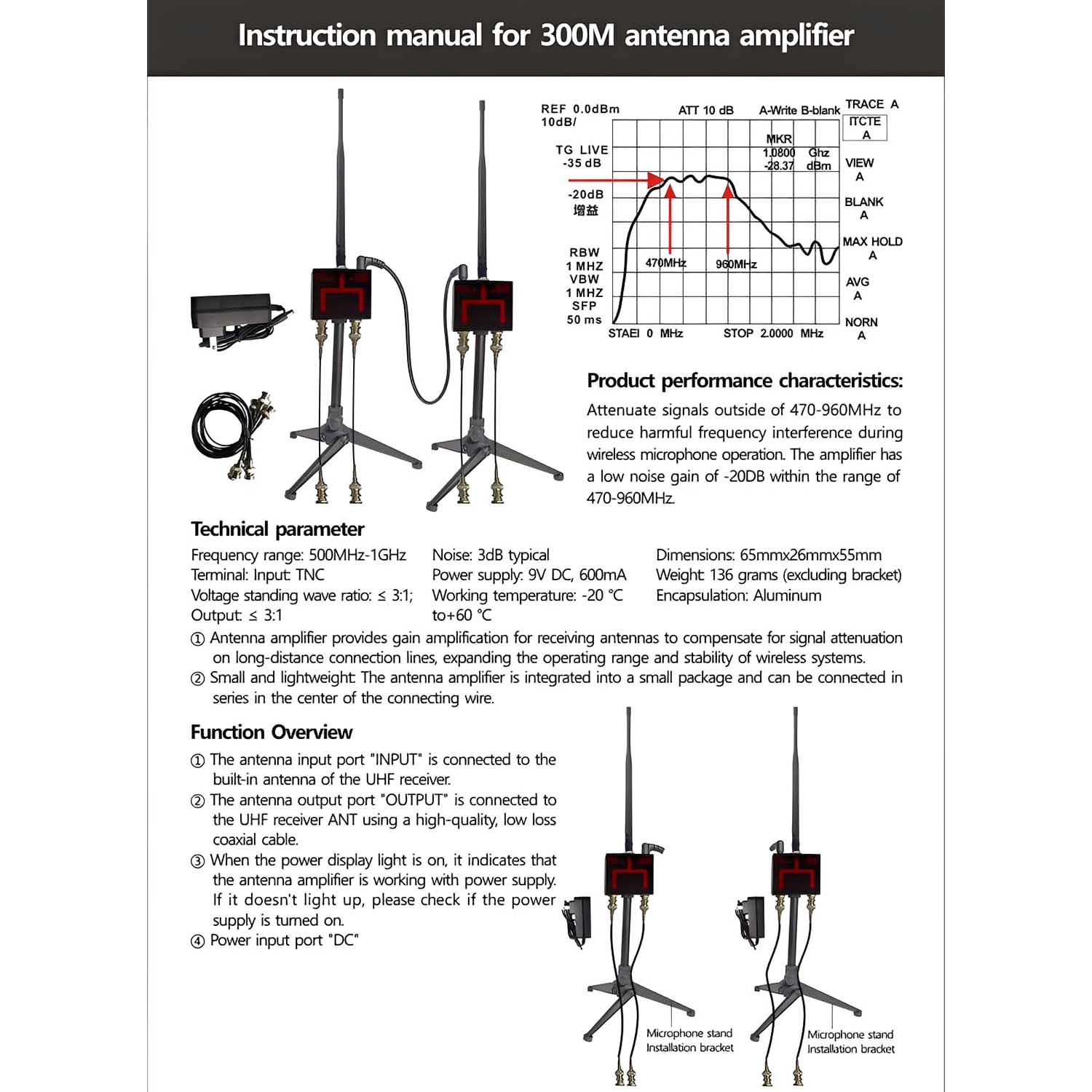

TX01 is a compact inline antenna amplifier positioned for compatible UHF receiving systems. The source also states out-of-band attenuation around 470–960 MHz, while one gain line is written as -20 dB; confirm the actual gain specification before system design.
TX01 is a compact inline antenna amplifier positioned for compatible UHF receiving systems. The source also states out-of-band attenuation around 470–960 MHz, while one gain line is written as -20 dB; confirm the actual gain specification before system design.
| Model | TX01 |
| Product type | Inline antenna amplifier |
| Published frequency range | 500 MHz–1 GHz |
| Out-of-band statement | Signals outside 470–960 MHz are attenuated |
| Gain statement | Source states “low-noise gain of -20 dB”; confirm polarity/value |
| Input | TNC |
| VSWR | Input ≤3:1; output published as ≥3:1 |
| Noise | 3 dB typical |
| Power | 9 VDC, 600 mA |
| Operating temperature | -20°C to +60°C |
| Dimensions | 65 × 26 × 55 mm |
| Weight | 136 g excluding bracket |
| Housing | Aluminium |

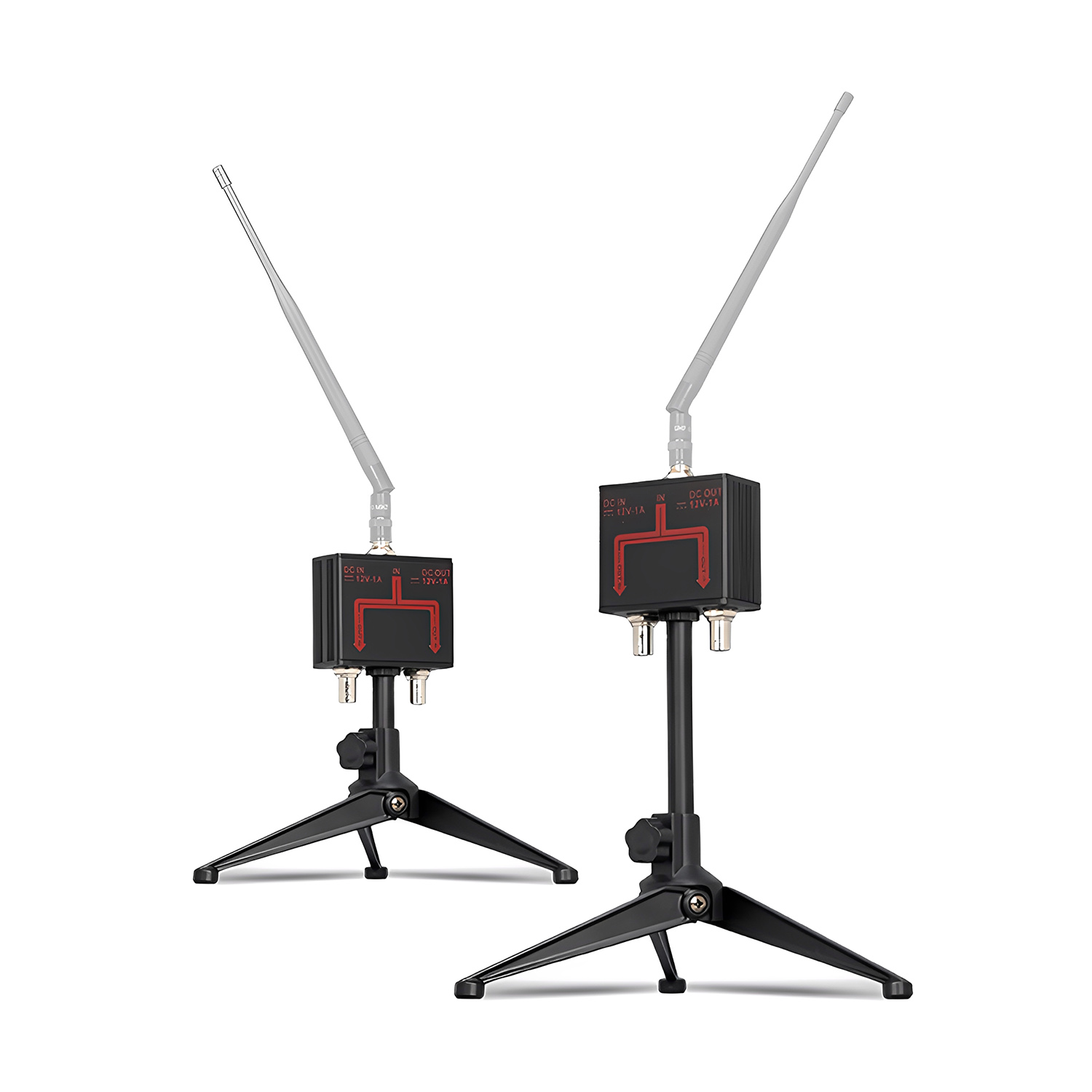

| Published accessory | Microphone-stand mounting bracket |
| SKU | M00476 |
Relevant to compatible UHF wireless microphone installations with long coaxial cable runs. Confirm frequency band, actual gain, connector gender, output VSWR statement and power method.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What frequency range is published?
500 MHz–1 GHz; the filtering statement also references 470–960 MHz.
What power does it require?
9 VDC, 600 mA.
Why must gain be confirmed?
The source calls it an amplifier but writes the gain as -20 dB, which may be a sign or wording error.
Is a mounting bracket listed?
Yes, a microphone-stand mounting bracket is stated.
