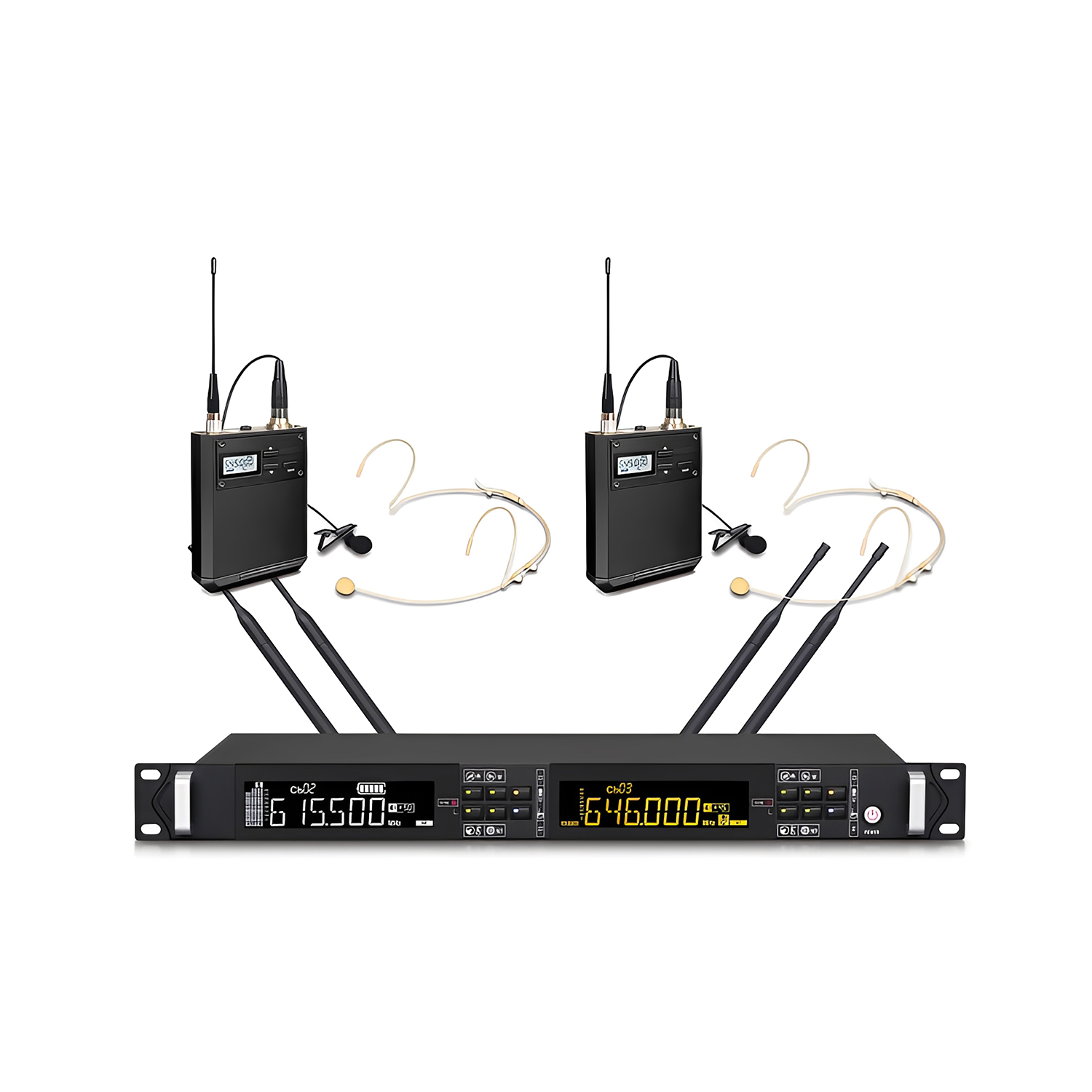

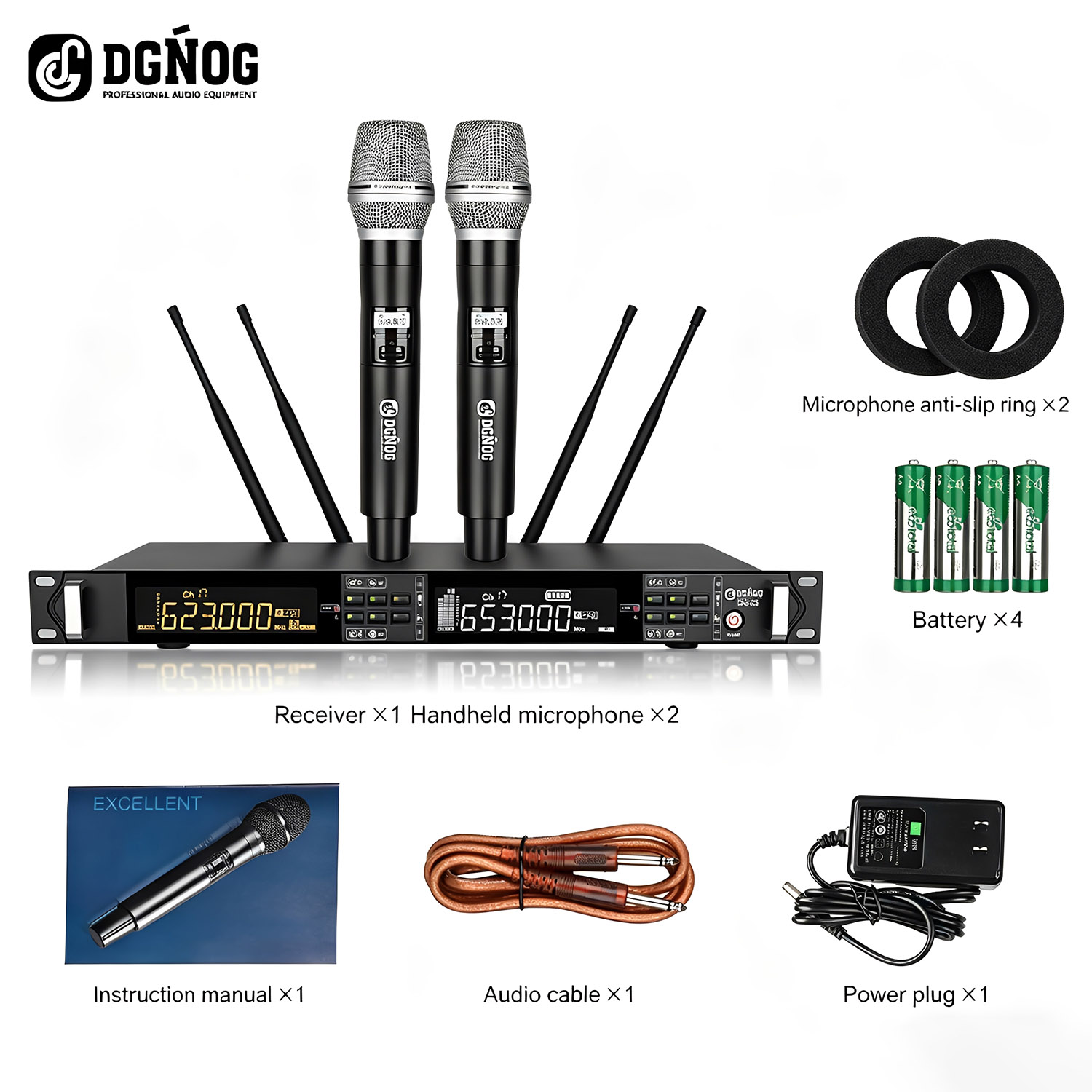

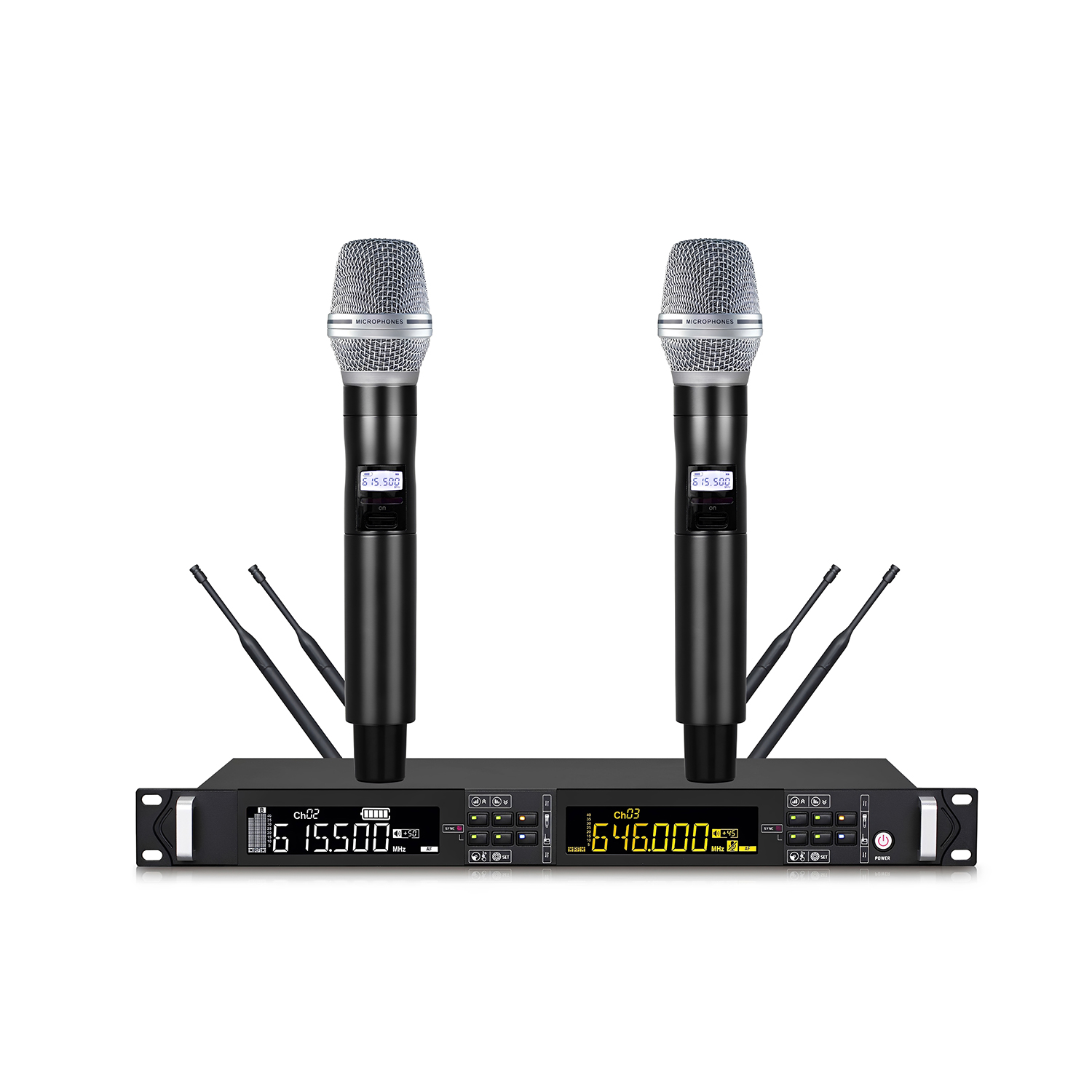

DG-25 2CH Performance True Diversity UHF Wireless Microphone
SKU:A02005

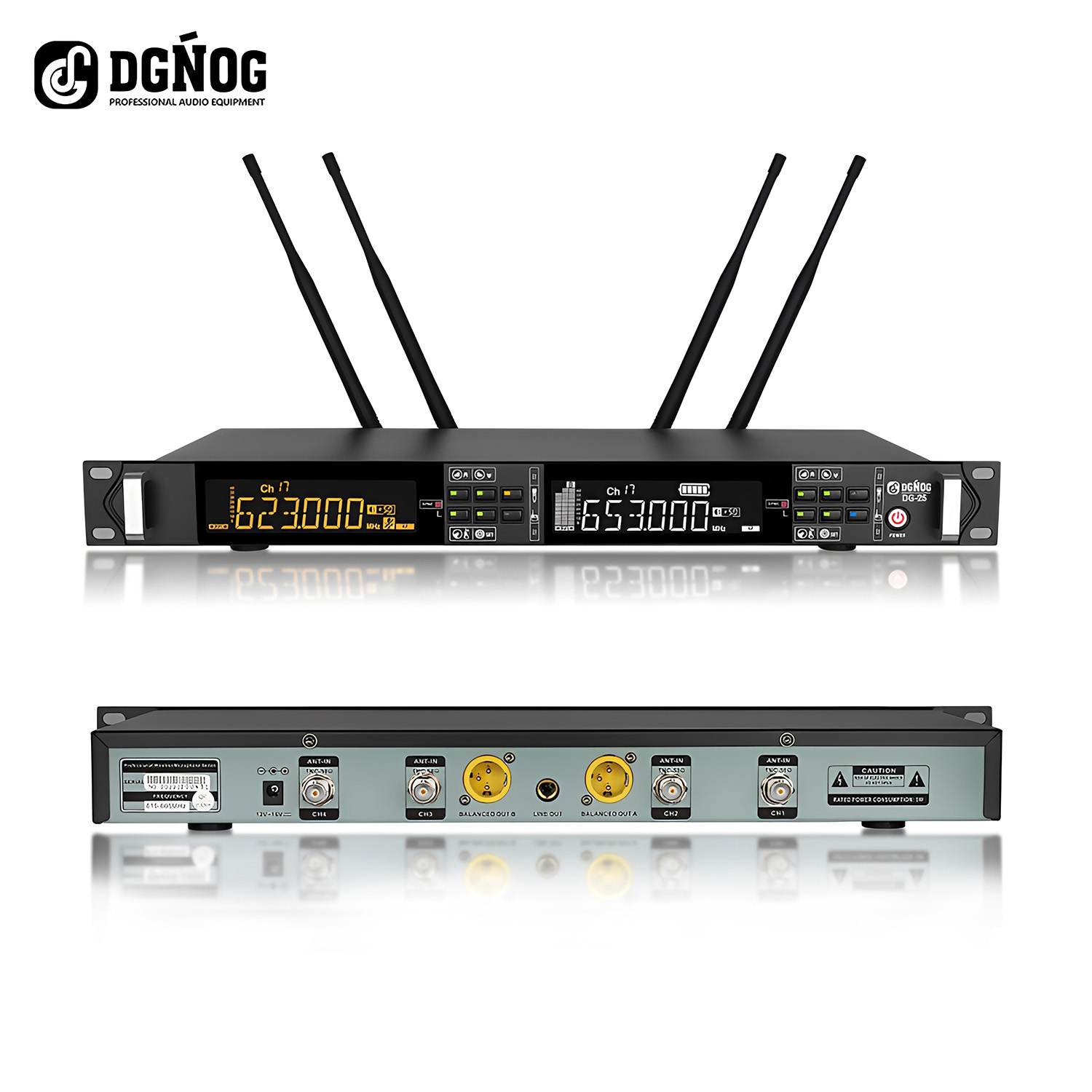

Receiver
Chassis Specifications: Standard 1U Chassis
Number of Channel Groups: Dual Channel
Carrier frequency band: UHF 513-558MHz / 615-665MHz / 780-820MHz
Modulation method: FM
Oscillation mode: PLL phase locked frequency synthesizer
Frequency stability: ±0.0005%
Sensitivity: When the offset is equal to 25KHz and the input is 6dBμV, S/N>60dB
Maximum offset: ±45kHz
Bandwidth: 40MHz
Comprehensive S/N ratio: >108 dB
Combined T.H.D.: <0.4% @ 1 KHz
Comprehensive frequency response: 65Hz~18kHz ± 3dB,
Maximum output voltage: Balanced: -20dBV/100Ω,
Unbalanced: -4dBV/5KΩ.
Output socket: XLR balanced and 6.3φ unbalanced socket
Panel buttons: switch and display of handheld and waist pack buttons
Effective working distance: generally 200 meters (open space)
Power supply: 100 - 240V AC50/60 Hz, 10W
Weight: 4.3KG
Dimensions (mm): 421 ( L ) × 43 ( H ) × 206 ( W )

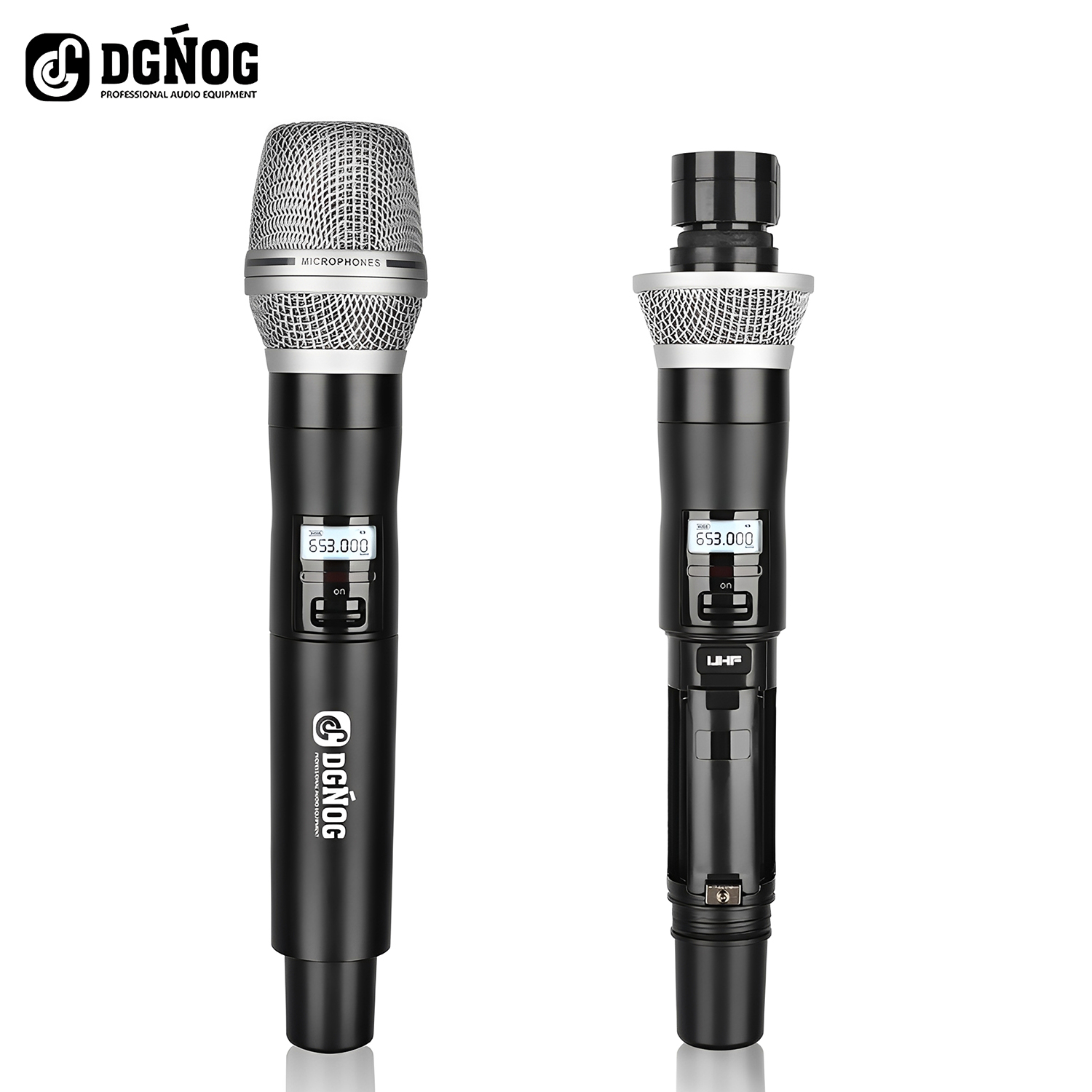

Handheld Transmitter Microphone
Carrier frequency band: UHF 513-558MHz / 615-665MHz/ 780-820MHz
Oscillation Mode: PLL Phase Locked Frequency Synthesizer
Harmonic radiation: < -63dBm
Bandwidth: 80MHz
Maximum offset: ± 45KHz
Power output: 10mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL
Sound head: moving coil
RF power output: 8mW; 8mW/15mW (Selectable)
Battery: AA×2
Current consumption: <110 mA
Battery drain: Almost 6 Hours
Dimensions (mm): 265mm length × 56mm diameterCarrier frequency band: UHF 513-558MHz / 615-665MHz/ 780-820MHz
Oscillation Mode: PLL Phase Locked Frequency Synthesizer
Harmonic radiation: < -63dBm
Bandwidth: 40MHz
Maximum offset: ± 45KHz
RF power output: 10mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL
Head: condenser
Battery: AA×2
Current consumption: <110 mA
Battery drain: Almost 6 Hours
