Product Description
Basic Specifications
Host Dimensions: 258 × 166 × 43 mm
Weight: Not Provided
Color: Not Provided
Audio Performance
Overall Frequency Response: 50 Hz - 18 kHz
Receiving Sensitivity: -98 dB
Maximum Frequency Deviation: ±25 kHz
Microphone Capsule Type: Dynamic
Wireless System
Carrier Frequency Band: UHF 470 - 960 MHz
Modulation Method: PLL Synthesized Control
Reception Method: Digital Transmission
Frequency Adjustment: Digital Tracking Adjustment
Transmitter Power Output: 10 mW / 20 mW (Switchable)
Operating Range: Approx. 100 meters (open area)
Power Supply & Consumption
Receiver Power: DC 12-15V, 500 mA
Transmitter Power: 2 × 1.5V AA Batteries
Transmitter Current Consumption: 120 mA
Connections & Features
Output Connectors: Parallel/Mixed Output

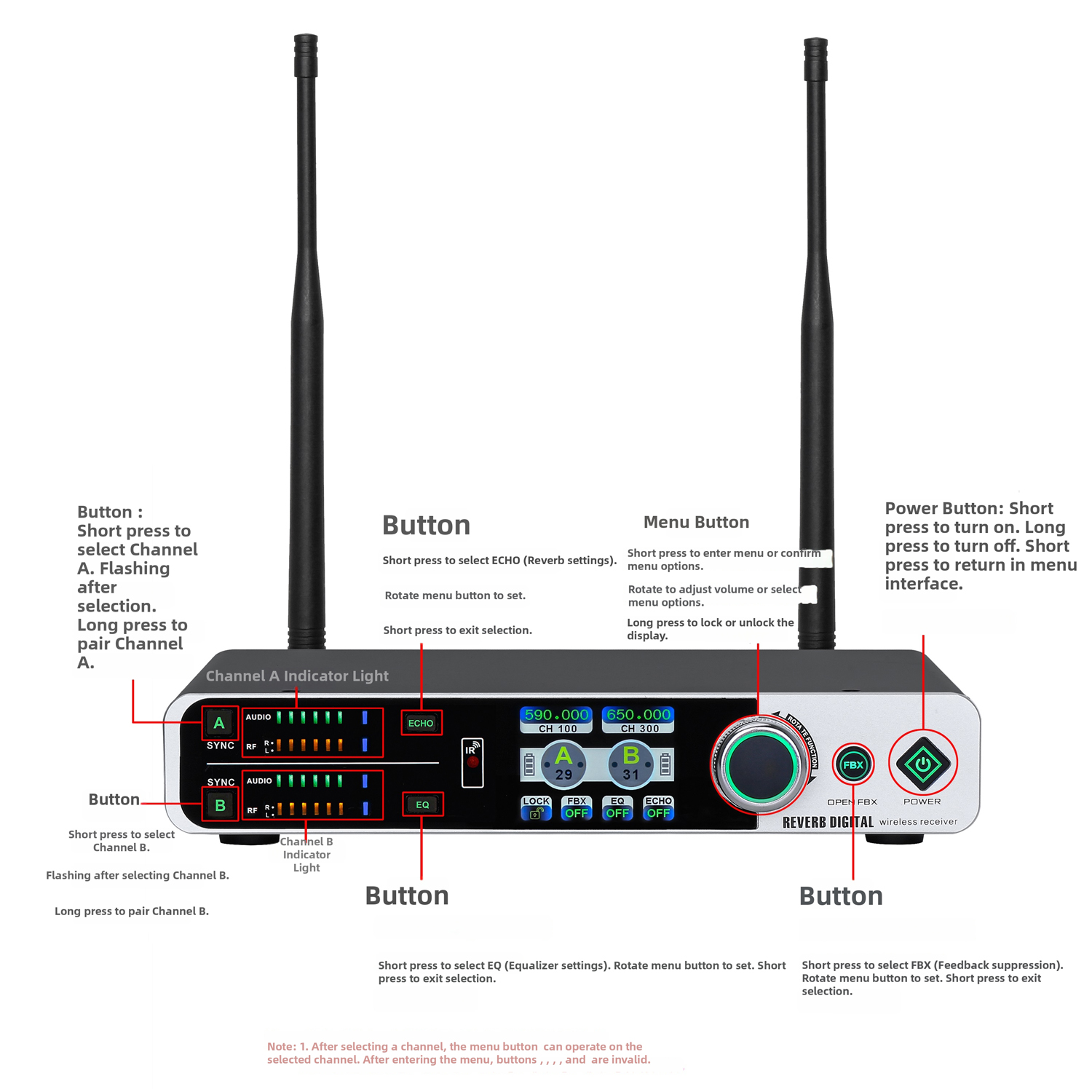

Display Panel: Color TFT Screen with Auto Frequency Scan
Built-in Spectrum Analyzer: Real-time interference frequency scanning
Audio Processing: Built-in Feedback Suppressor, Adjustable Reverb, Equalizer (EQ)
